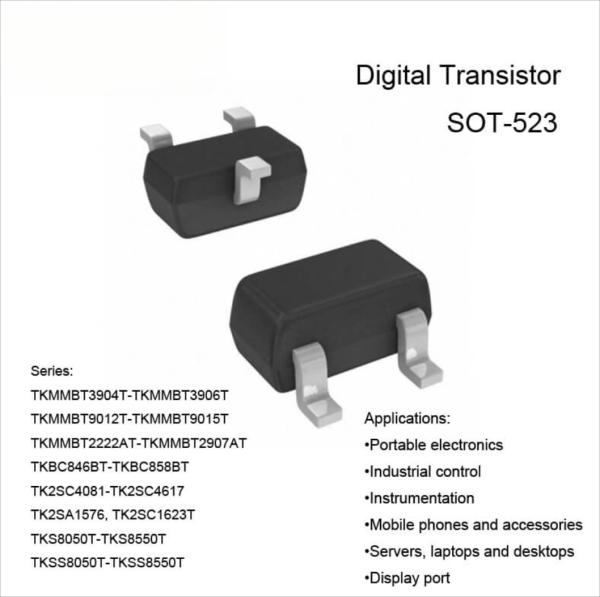

SOT-523 Digital Transistor DTA114EE DTC123JE

Name: SOT523 Digital Transistor DTA114EE DTC123JE
Brand: Krunter Future
Price: 1 USD

Wholesale SOT-523 Digital Transistor DTA114EE DTC123JE from china suppliers

Brand Name : Krunter Future

Model Number : SOT-523

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T,MoneyGram

Supply Ability : Negotiable

Delivery Time : 20-30days

Packaging Details : Negotiable

Package Outline : SOT-523

Contact Now

Electrical Characteristics — Suitable For SOT-523 Packages

Part Number	Io (A)	VCC	Gi	Pc (mW)	R1/R2	Makin	MPQ
DTA114EE	-0.1	-50	-30	150	10K/10K	14	3000
DTC114EE	0.1	50	30	150	10K/10K	24	3000
DTC143ZE	0.1	50	80	150	4.7K/47K	E23	3000
DTA144EE	-0.1	-50	-68	150	47K/47K	16	3000
DTC144EE	0.1	50	150	150	47K/47K	26	3000
DTC123JE	0.1	50	80	150	2.2K/47K	E42	3000

Key Features

1. Integrated Resistors: Built-in bias resistors simplify design and save PCB space.

2. Ultra-Compact Size: SOT-523 is ideal for modern space-constrained electronics.

3. Low Power Consumption: Suitable for low-voltage and low-current applications.

4. Three-Terminal Configuration: Standard collector-base-emitter layout.

5. Simplified Circuit Design: Reduces need for external components.

6. Surface-Mount Technology: Compatible with automated assembly processes.

7. Low Parasitic Elements: Supports high-frequency signal integrity.

8. Limited Current and Power Handling: Optimized for signal-level operation.

Typical Applications

• Portable Electronics

• Industrial Control

• Instrumentation

• Mobile Phones & Accessories

• Servers, Laptops, and Desktops

• Display Port

Shipping & Support

SOT-523 Digital Transistor DTA114EE DTC123JE

Shipping Details

• Lead Time: 1–2 Weeks

• Delivery: 3–40 working days (As your choice & your country)

After-Sales Service

• Free Samples

• Warranty: 2 Year

• 24-Hour Online Service: Solve your product problems and any other issues

Product Tags:

Digital Transistor DTA114EE

SOT-523 Digital Transistor

SOT-523 Digital Transistor DTA114EE DTC123JE Images
